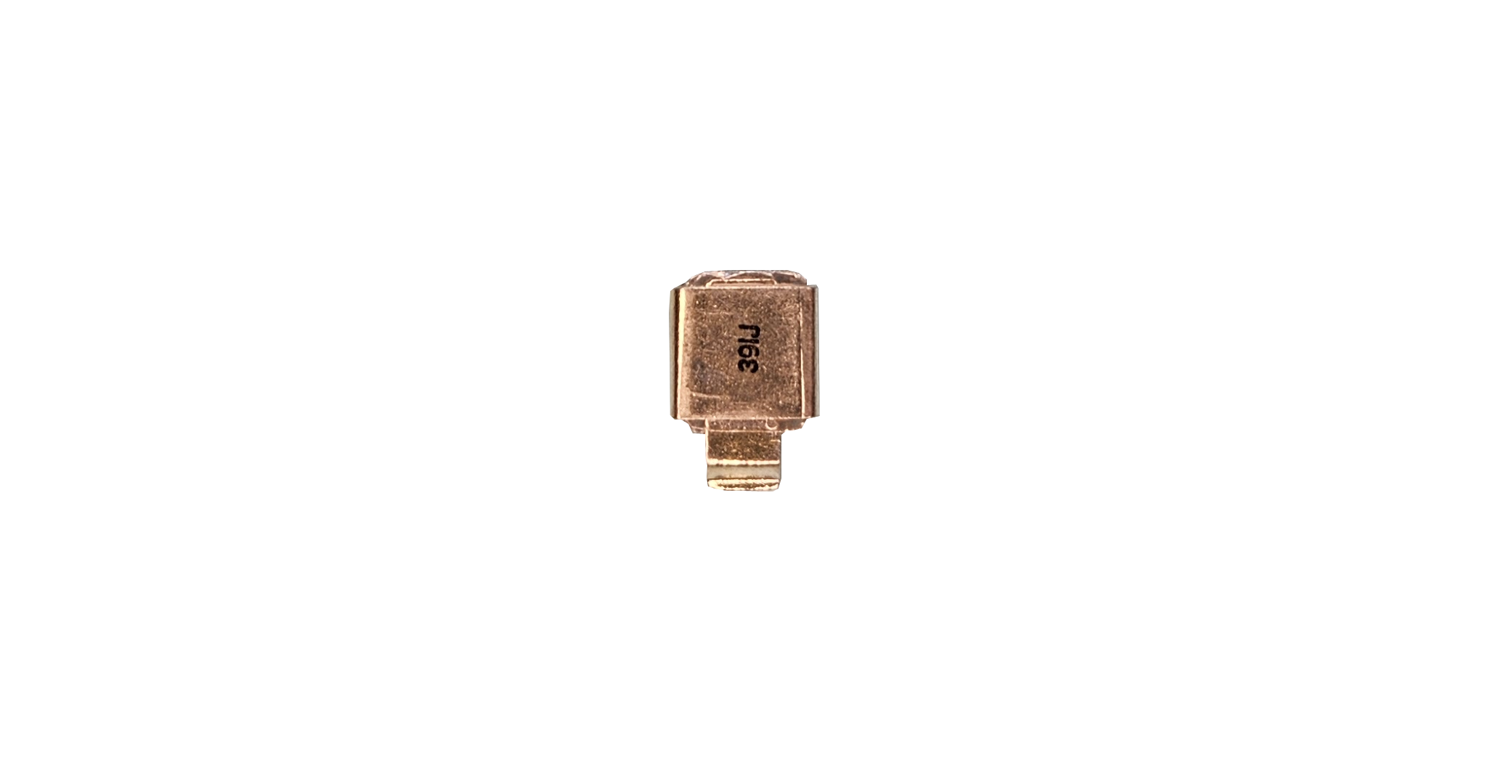

Types SWM , SCJ101-2 SMT metal clad mica capacitors for high power applications requiring low inductance at high frequencies. Operates at temperatures up to 200 degree cel. and voltages upto 1000Vdc. SWM, SCJ101-2 configurations offers easy surface mounting. To assure high current capability in low capacitance ratings we use very high high thickness ruby muscovite condenser mica.
Highlights
- 200°C rated with no voltage derating
- Reflow Solderable
- No Cracking
- Compatible with FR4 & FR5 PCBs
- Gull-Wing terminal minimizes stress
- Nonmagnetic for minimal RF loss
- Stable : no change with T,V, & F
- ROHS Compliant
Applications
- RF power amplifier
- Lasers
- Mobile Radio
- MRI Coils
- RF Medical equipment
- Mobile antennas
SPECIFICATIONS FOR METAL CLAD-SWM 602
1.Ordering Code For Metal Clad - SWM 602
| SWM602 | E | C | 150 | J | - | rh |
|---|---|---|---|---|---|---|
| TYPE | TEMPERATURE COEFFICIENT | RATED VOLTAGE | CAPACITANCE (PF) | CAPACITANCE TOLERANCE | BULK PACKING | ROHS COMPLIANT |
| Refer Spec. no 9 | Refer Spec .no.2 | 150-15PF 680-68PF 101-100PF |
(PF OR %) Refer Spec. no. 3 |
100PCS/ PLASTIC BAG |
2. Rated Voltage
C→ 300 V DC
3. Capacitance Tolerance
G→+/- 2%
J →+/- 5%
D → +/- 0.5 Pf (1 To 10 pF)
4. Capacitance Range
1pF to 120 pF

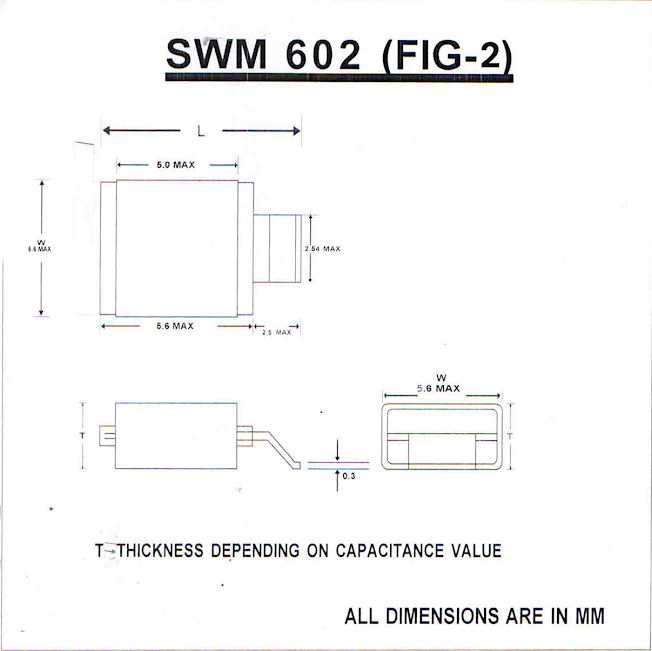

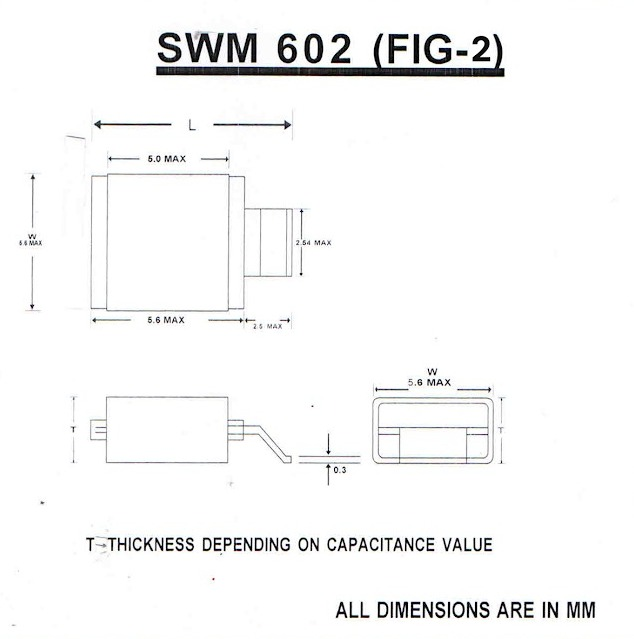

5. Dimensions( Max. ) Refer Fig - 2
L → 8.1 mm (MAX)
W → 5.6 mm (MAX)
T (1 to 120 PF) → 2.5 mm (MAX)
6. With standing voltage
200 % OF RATED VOLTAGE FOR 1 TO 5 SECONDS (WITH SURGE CURRENT NOT EXCEEDING 5 mA.)
7. Insulation Resistance
1000 MEGOHMS (min.) AT 100 VDC AND AT 25°C
8. Tangent Delta
5 pF to 30 pF → < 0.0020 (1 MHz)
31 pF to 180 pF → < 0.0010 (1 MHz)
9.Temp. Coefficent
C (1 to 20PF) → -200 to +200 ppm/°C
D (21 To 56PF) → -100 to +100 ppm/°C
E (57 To 180PF) → -20 to + 100 ppm/°C
F (57 To 180PF) → -20 to + 70 ppm/°C (ON REQUEST)
10.Temp. Range
- 55°C TO +200°C
11.Terminals
NON INDUCTIVE , SILVER PLATED, COPPER FLASHED, BRASS
12. Compliant
LEAD FREE, ROHS
13. Marking
CAP ID AND TOL. (15PF+/-5% →150J)
.png)
SPECIFICATIONS FOR METAL CLAD – SCJ101-2
1. Ordering Code For Metal Clad - SCJ101-2
| SCJ101-2 | E | D | 201 | J | - | RH |
|---|---|---|---|---|---|---|
| TYPE | TEMPERATURE COEFFICIENT | RATED VOLTAGE | CAPACITANCE (PF) | CAPACITANCE TOLERANCE | BULK PACKING | ROHS COMPLIANT |
| Refer Spec. no 9 | Refer Spec no. 2 | 101-100PF 201-200PF |
(PF OR %) Refer Spec no. 3 |
100 pcs/ PLASTIC BAG |
2. Rated Voltage
D→ 500 V DC
3. Capacitance Tolerance
J →+/- 5%
4. Capacitance Range
5pF to 1000 pF

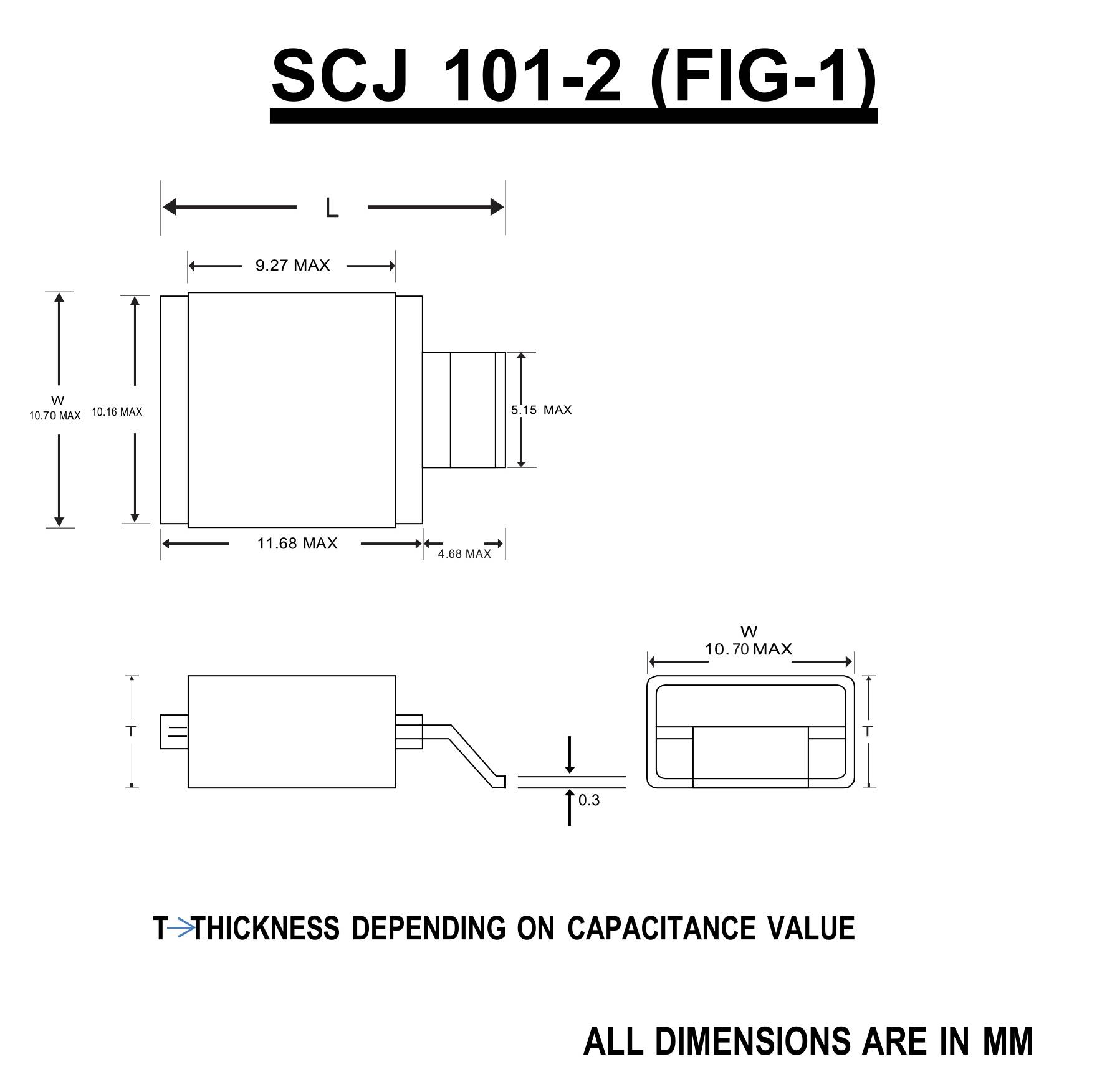

5. Max. Dimensions(500v Dc) Refer Fig - 1
L → 16.36 mm (MAX)
W → 10.70 mm (MAX)
H (5 to 100 PF)→ 3.5 mm (MAX)
(101 To 390 PF) → 3.8 mm (MAX)
(391 To 1000 PF) → 4.5 mm (MAX)
6.With Standing Voltage
200 % OF RATED VOLTAGE FOR 1 TO 5 SECONDS (WITH SURGE CURRENT NOT EXCEEDING 5 mA.)
7. Insulation Resistance
1000 MEGOHMS (min.) AT 100 VDC AND AT 25°C
8. Tangent Delta
5 pF to 30 pF→< 0.0020 (1 MHz)
31 Pf to 1000pF→< 0.0010 (1 MHz)
9.Temp. Coeff:
C (5 to 20PF)→ -200 to +200 ppm/°C
D (21 To 56PF)→ -100 to +100 ppm/°C
E (57 To 1000PF) →-20 to + 100 ppm/°C
F (57 To 1000PF) → 0 to + 70 ppm/°C (On Request)
10. Temp. Range
- 55°C TO + 200°C
11. Terminals
NON INDUCTIVE , SILVER PLATED, COPPER FLASHED, BRASS.
12. Compliant
LEAD FREE, ROHS
13. Marking
CAP ID. AND TOL. (100PF +/-5%→ 101J)

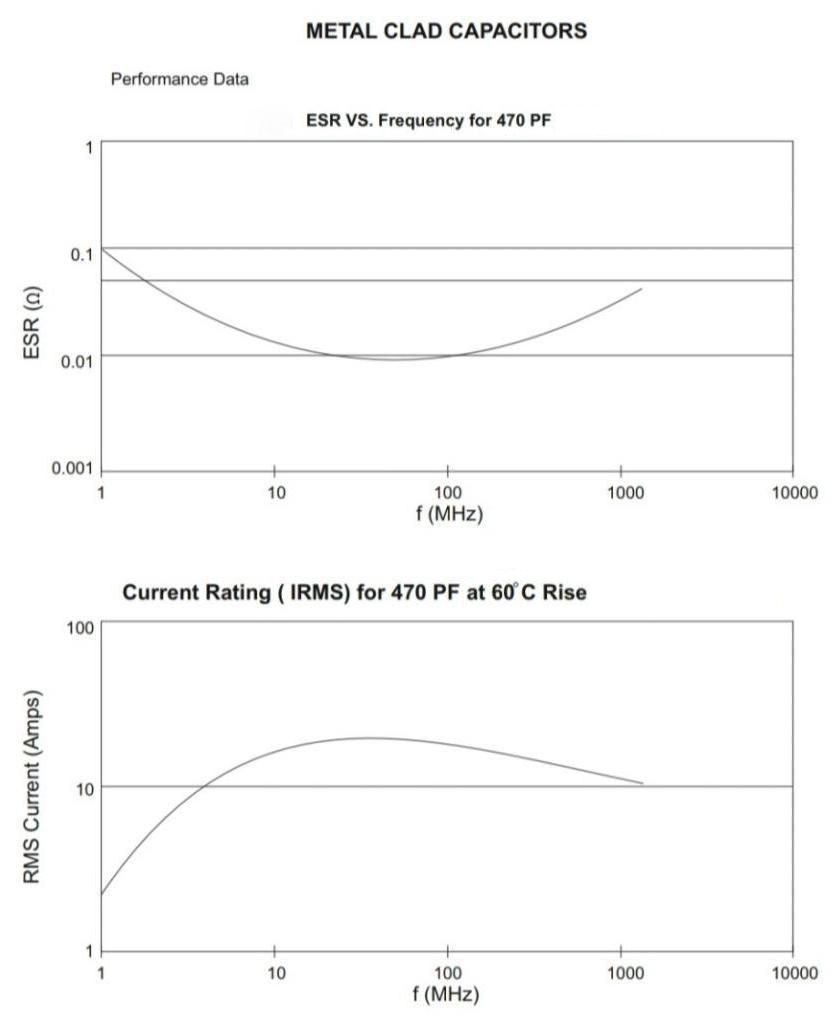

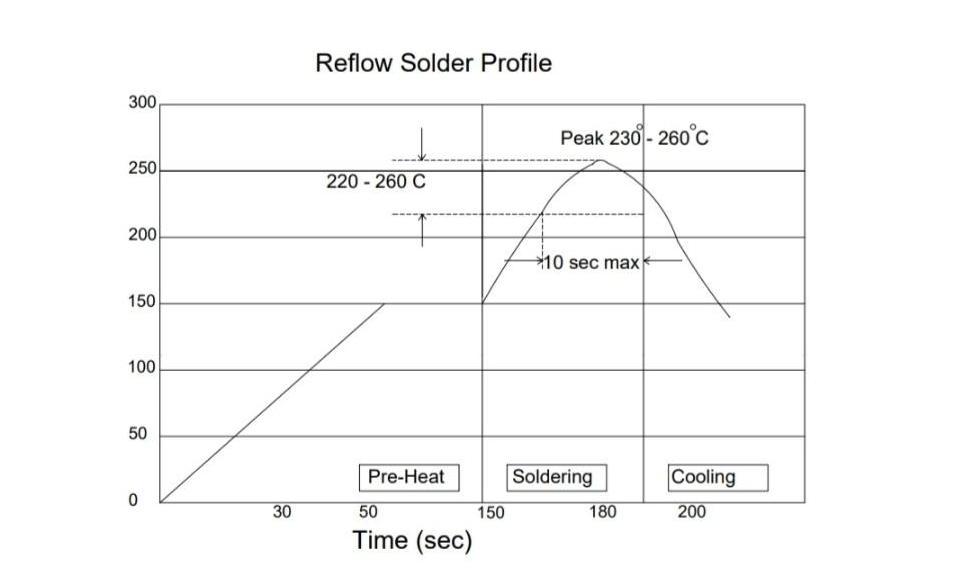

Solder Profile:
.jpg)
Hand Soldering:
- Sn Ag Cu recommended solder.
- Pre heat the metal clad capacitors to 150c minimum 2 min.
- Use 100W or less temp controlled Iron.
- Tip Temperature 260 Deg.cel. to 280 Deg.cel.
- Soldering tip not greater than 5 mm.
- Don’t use strong acid flux.
- Apply transmission of heat through the soldering material.
.jpg)
